Product introduction

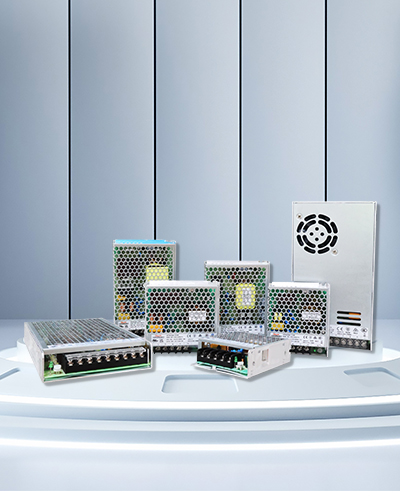

       SVDC series has a universal input voltage range. AC and DC dual-use is for both SVDC and SVEC series.The metal mesh shell structure enhances the heat dissipation capacity, and can work normally in the temperature range of -30℃ to +70℃. Providing no-load power consumption of less than 0.5W, it can make the terminal system easily meet international energy requirements. It provides comprehensive protection and anti-5G vibration capabilities, built-in EMI filter components, complies with CISPR32/EN55032 CLASSB.Good electromagnetic compatibility (EMC) characteristics protects terminal electronic equipment from electromagnetic interference.

FEATURES

35W-150W: 85-305Vac;200W-300W:90~ 132VAC / 180 ~ 264VAC by switch;

Withstand 300VAC surge input for 5 seconds;

Protection:  short circuit,over load, over voltage,over temperature;

35W-200W：air cooling, fanless.350W: built-in cooling fan;

1U slim profile;

Withstand 5G vibration test;

LED indicator for power on;

Low no load power comsumption. 35W-150W<0.5W;200W-350W<0.75W;

100% full load burn-in test;

Working temperature up to 70℃;

High efficiency, long lifetime and high reliability;

3 years warranty.
